Vape Parts Explained: How Does a Vape Work?

Hemok Wang
Hemok Wang
Nov 7, 2023
Vape Parts Explained: How Does a Vape Work?

Have you ever stopped to think about what’s happening inside your vape kit when you use it? It’s actually pretty amazing to consider the volume of research that has gone into replacing something as simple as a cigarette. A surprising amount of work has been done by the industry in the little over a decade in which vaping has existed.

Creating a device capable of vaporizing a liquid for inhalation wasn’t the difficult part of inventing the e-cigarette – vaporizer technology has been around for many years. Creating vaping devices that are satisfying and reliable while being small enough that people actually want to use them, however, has been the hard part. Although the journey toward the modern vaping device has been a bit of a roller coaster, we like to think that the industry has done a pretty good job along the way.

If you’re a smoker and want to know what vaping is and how it works – or you’ve already switched to vaping and simply want to know what’s inside of a vape – this is the article for you. Reading it, you’re going to learn about the different parts of a vape and how they work with each other to deliver satisfying clouds of vapor on demand.



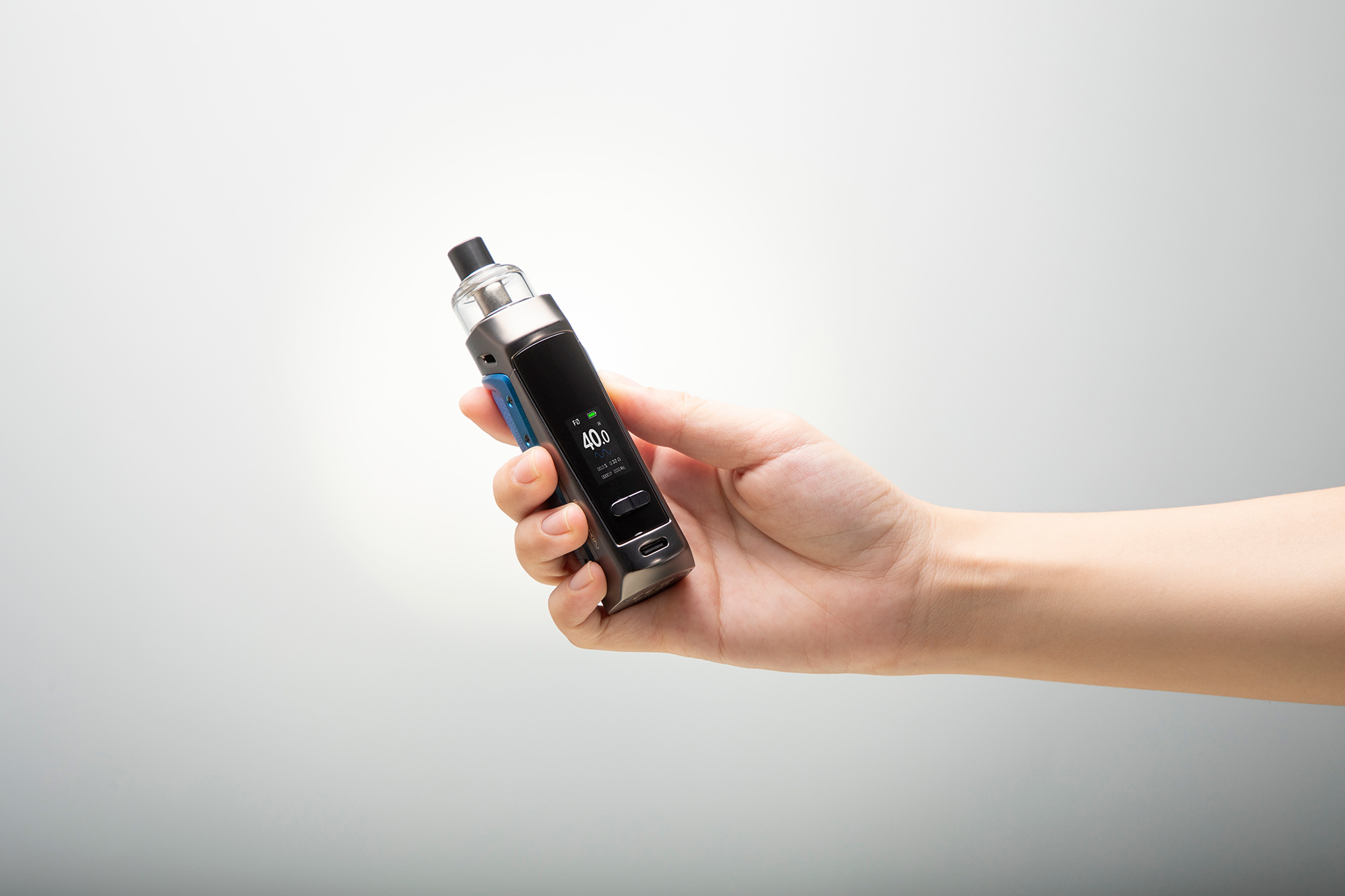

What Does a Vaping Device Do?

The purpose of a vaping device is to heat a flavored liquid called e-liquid or vape juice, creating a cloud of vapor that you can inhale. E-liquid usually contains nicotine. With or without nicotine, vaping simulates the motions, flavors and sensations of smoking. Vaping is used by tens of millions of people worldwide as an alternative to tobacco cigarettes.

Arcfire



What Are the Parts of a Vape, and How Do They Work?

With that basic definition out of the way, let’s explore how vaping works a bit more deeply by discussing the parts of a vape and how they interact with each other. These general descriptions apply to most types of vaping devices including vape pens, vape mods and pod vapes. Disposable vapes tend to have a few small differences from other types of vapes, though, so we’ll discuss them separately below.

These are the parts of a vape.

The Battery

The battery supplies the power that makes a vaping device work. It’s common for a vaping device to have a permanent built-in battery, although there are also devices with removable batteries. A vaping device commonly has a USB port for charging, but you can use an external charger to charge a removable battery if you prefer. Depending on the capacity of the battery and your device’s settings, you can usually use a vaping device for a full day before charging the battery. If you have a vaping device with adjustable wattage, you can increase the device’s battery life by vaping at a lower wattage.

The Logic Board, Integrated Circuit and Firmware

A vaping device is an electronic gadget, so it requires certain components in order to control its functions. Inside a vape, you’ll find a logic board and integrated circuit that look a bit like miniature versions of the motherboard and processor in your computer. Those components combine with a type of hard-coded programming called firmware to control the device’s functions. The main function of a vaping device’s logic subsystem is ensuring the safe delivery of power from the battery to the heating element. To accomplish that, the integrated circuit and firmware may include the following safety functions.

  • An automatic timer to prevent long puffs that could cause overheating
  • A temperature monitor to shut the device down if it overheats
  • A battery monitor to check the cell’s voltage during use and charging
  • A circuit to manage the charging process and stop charging when the battery is full
  • A current monitor to ensure that the connected coil won’t draw an unsafe current
  • A resistance checker to ensure that the connected coil is within the device’s supported resistance range and doesn’t have a short circuit

The safety subsystem in a vaping device needs to engage itself before the device begins to produce vapor, so the device runs through all of the safety checks listed above when you puff on it or press the fire button. If the safety checks pass, the device produces vapor. If not, the device blinks or displays an error message. The entire process is completed in just a fraction of a second.

The Threading or Pod Contacts

Except in all-in-one devices with permanently attached tanks like the Innokin Endura S1, the top of a vaping device will have threading for a twist-on tank or a chamber for a drop-in pod. If the device is a pod system, it’ll have one or more metal plates that connect to the attached pod. If the device uses a traditional vape tank, the center of the threading has a spring-loaded center pin that connects to a pin at the bottom of the tank. The pin or contact is designed for high electrical conductivity and is often made from copper with gold plating.

Endura S1

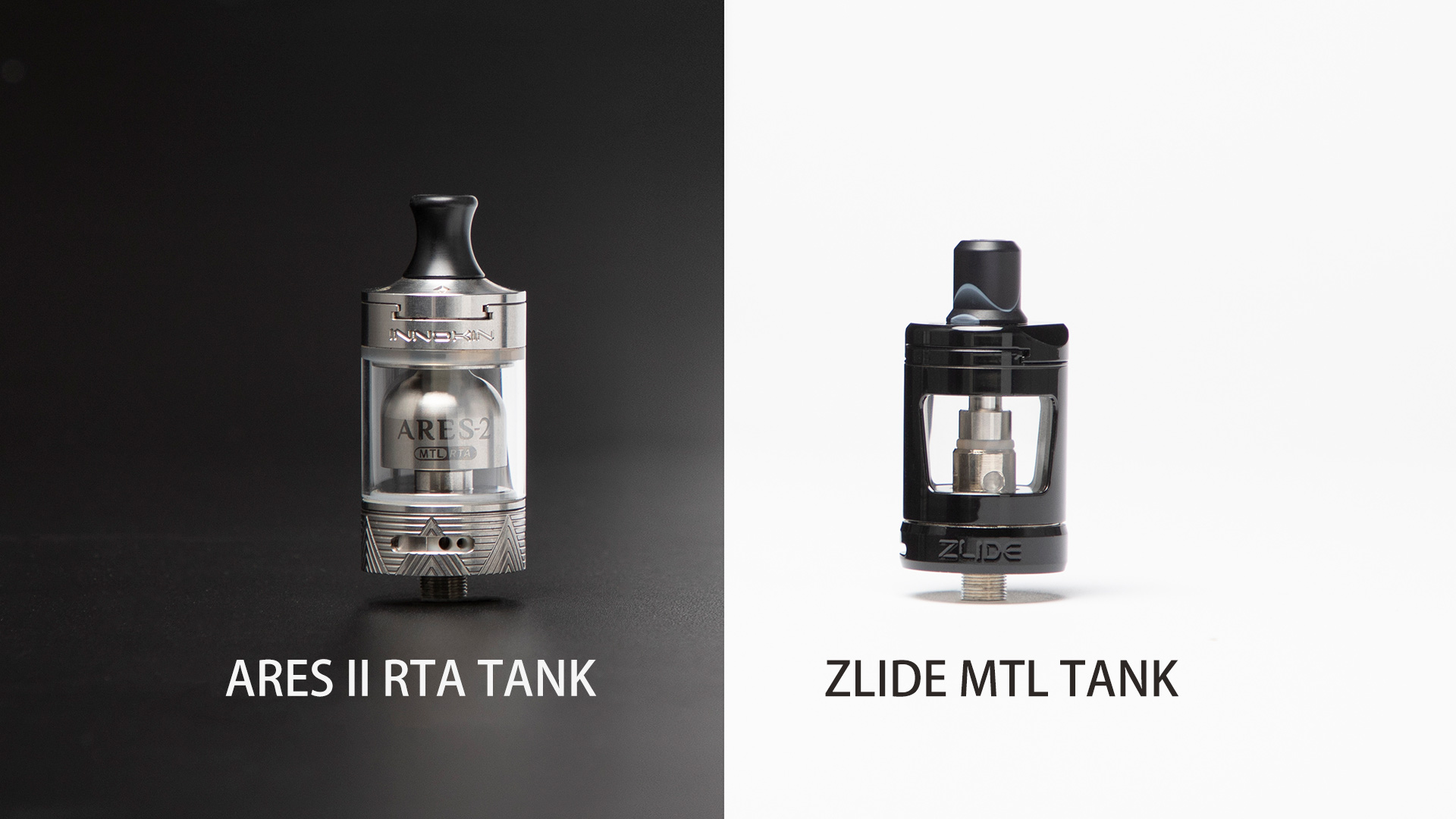

The Reservoir and Chimney

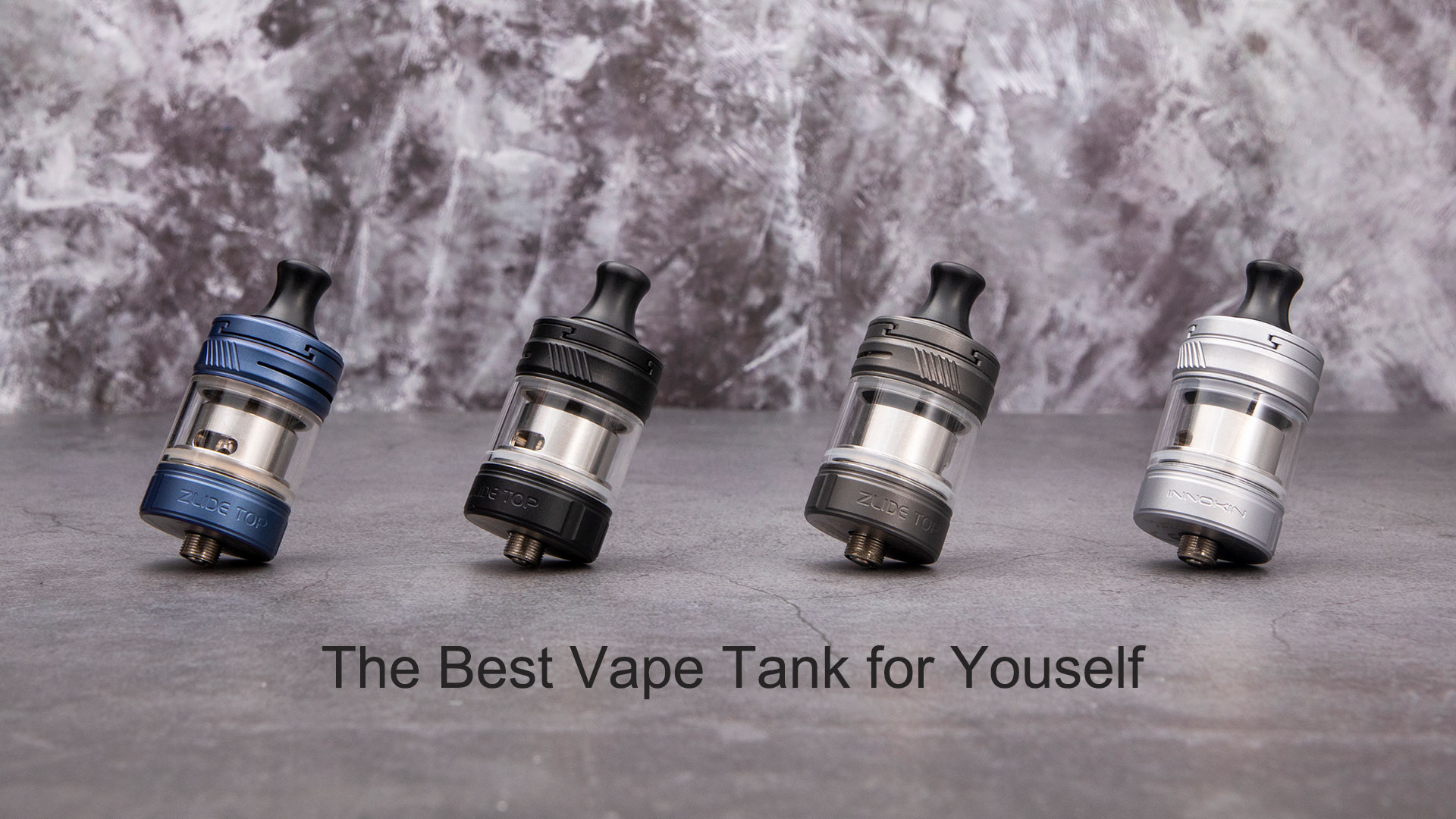

A vape tank or pod consists of three main components: the reservoir, the airflow system and the coil assembly. Because the coil assembly is the most important component, we’ll discuss it separately in the next section. The reservoir is the main glass or plastic body of the tank or pod. It’s responsible for holding your device’s e-liquid. The airflow system consists of the intake vent at the bottom of the tank or pod and the chimney leading from the coil assembly to the mouthpiece. The coil assembly manages the flow of e-liquid in the tank or pod, ensuring that the vape juice enters the coil as it’s needed and that the tank or pod doesn’t leak.

The Coil Assembly

The coil assembly is the main part of a vape tank or pod, and the primary components of the coil assembly are the wick and the heating element. When you examine a vape coil, you’ll notice that it has holes on the side. Through the holes, you can see the coil’s white cotton wick. E-liquid saturates the wick by traveling though the holes. Once the wick is completely wet, though, a weak vacuum forms inside the tank or pod and prevents the e-liquid from continuing to flow, which would flood the coil assembly and cause a leak.

The heating element is the component of a vape coil that produces vapor. The wick is wrapped around the heating element, and it supplies the element with e-liquid. When the device is activated, the element becomes hot and vaporizes the e-liquid in the wick. The resulting vapor travels through the chimney and exits the tank or pod through the mouthpiece.



Bringing It All Together: How Vaping Works

Now that you understand what the parts of a vaping device do, it’s time to learn how they all work together. When you puff on your vaping device or press the fire button, the following things happen.

  • The device runs through a battery of safety checks to ensure that you can vape safely. As described above, the safety checks include checking the health of the battery and scanning the resistance of the connected coil to ensure that it won’t cause an unsafe current. The device only works if the safety checks pass.
  • If it’s safe to vape, the device channels power from the battery to the heating element. When electricity passes through the element, it becomes hot and vaporizes the e-liquid suspended in the wick.
  • When you inhale through the mouthpiece, air travels through the intake vents at the bottom of the tank or pod. The air moves through the coil assembly and out of the chimney, carrying the vapor to your mouth.
  • When you release the fire button or stop puffing, the wick in the coil assembly is dry. The wick absorbs e-liquid from the reservoir, decreasing the level of vape juice slightly. This continues until the tank or pod is empty, and at that point, you need to refill it.



How Do Disposable Vapes Work?

A disposable vape operates in much the same way as a device that stores its e-liquid in a tank or pod. The difference, however, is that disposable vapes typically don’t store their e-liquid in reservoirs. Instead, a disposable vape usually has a large wick placed in contact with the heating element. All of the device’s e-liquid – which might be two milliliters or more – is held in the wick. When you use the device, the heating element vaporizes the e-liquid suspended in the innermost part of the wick. This leaves the inner section of the wick dry, while the outer section is still wet. The wick balances itself through the process of absorption, and vaping continues in this fashion until the wick is completely dry. At that point, it’s time to replace the device.
